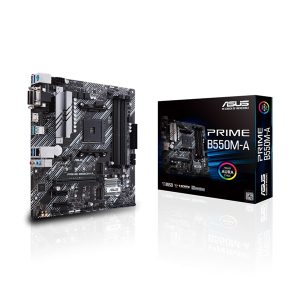

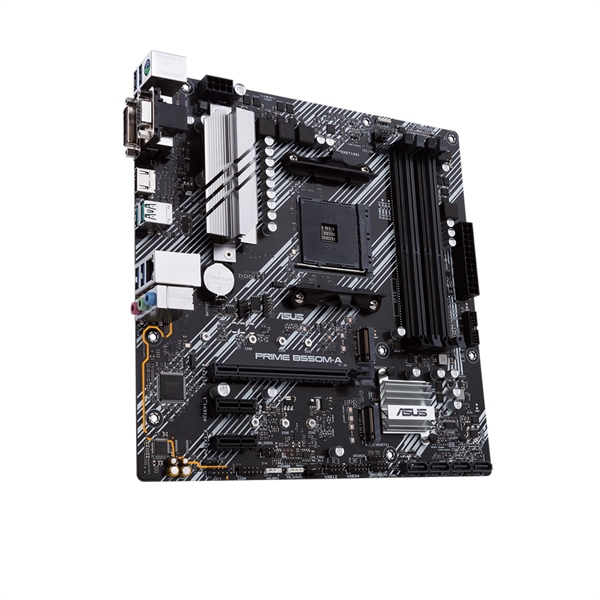

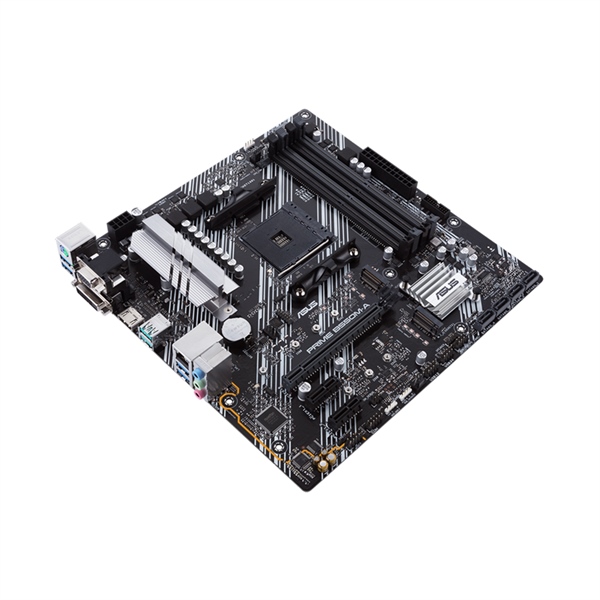

Mainboard ASUS Prime B550M-A (AMD B550, AM4, m-ATX, 4 khe RAM DRR4) – Cái

- CPU hỗ trợ: AMD Ryzen™ 5000 Series/ 3000 Series/ 5000 G-Series/ 4000 G-Series Desktop Processors
- Chipset: B550
- Bộ nhớ trong (RAM):
+ 4 x DDR4 DIMM Slots
+ Hỗ trợ tối đa: 128GB
- Khe cắm mở rộng (PCIe Slots):
+ Cho CPU Ryzen™ 5000 Series/ 3000 Series: 1 x PCIe 4.0 x16 (x16 mode), 1 x PCIe 3.0 x16 (x16 mode)
+ Cho Chipset B550/CPU Ryzen™ G-Series: 2 x PCIe 3.0 x1
- Ổ cứng hỗ trợ (Storage):
+ Tổng cổng: Hỗ trợ 2 x M.2 slot(s) và 4 x SATA 6Gb/s ports
+ M.2_1 (CPU): 1 x M.2 Socket 3 (Type 2242/2260/2280/22110) (PCIE 4.0 x4 và SATA modes)
+ M.2_1 (CPU G-Series): 1 x M.2 Socket 3 (Type 2242/2260/2280/22110) (PCIE 3.0 x4 và SATA modes)
+ M.2_2 (Chipset B550): 1 x M.2 Socket 3 (Type 2242/2260/2280) (PCIE 3.0 x4 và SATA modes)
+ SATA: 4 x SATA 6Gb/s port(s) (Hỗ trợ Raid 0, 1, 10)
- Mạng (LAN / Wireless): Realtek RTL8111H 1Gb Ethernet
- Cổng kết nối (Internal Headers):
+ Quạt (Fan): 1x CPU Fan, 1x CPU OPT Fan, 2x Chassis Fan
+ Nguồn: 1x 24-pin EATX Power connector(s), 1x 8-pin EATX 12V Power connectors
+ USB: 1x USB 3.2 Gen 1 (hỗ trợ thêm 2 cổng), 2x USB 2.0 (hỗ trợ thêm 4 cổng)
+ Lưu trữ: 4x SATA 6Gb/s connector(s), 2x M.2 Socket 3
+ RGB: 2x Aura RGB Strip Headers, 1x Addressable Gen 2 header(s)
+ Khác: 1x S/PDIF out header(s), 1x Front panel audio (AAFP), 1x System panel connector, 1x COM port header, 1x Speaker connector, 1x Clear CMOS jumper(s), 1x SPI TPM header
- Cổng kết nối (Back Panel I/O):
+ Video: 1x DVI-D, 1x D-Sub (VGA), 1x HDMI
+ USB: 2x USB 3.2 Gen 2 Type-A (teal blue), 4x USB 3.2 Gen 1 Type-A (blue)
+ Mạng/Khác: 1x LAN (RJ45) port(s), 1x PS/2 keyboard/mouse combo port(s), 3x Audio jack(s)
- Kích cỡ:
+ Form Factor: mATX Form Factor
+ Kích thước vật lý: 9.6 inch x 9.6 inch (24.4 cm x 24.4 cm)
